YL系列電機
圖片展示
產品規格
YL系列
|
型號 |
機座號 |
(HP) |
功率(W) |
電壓(V) |
電流(A) |
頻率(Hz) |
轉速 |
效率 |
功率因數 |
Tst/Tn |
Tm/Tn |
Ist(A) |
|
YL631-2 |
63 |
1/4 |
180 |
220 |
1.5 |
50 |
2800 |
60 |
0.92 |
1.8 |
1.7 |
10 |
|
YL632-2 |
1/3 |
250 |
1.93 |
64 |
0.92 |
12 |
||||||
|
YL631-4 |
1/6 |
120 |
1.06 |
1400 |
56 |
0.92 |
8 |
|||||
|
YL632-4 |
1/4 |
180 |
1.5 |
59 |
0.92 |
10 |
||||||
|
YL711-2 |
71 |
1/2 |
370 |
2.73 |
2800 |
67 |
0.92 |
16 |
||||
|
YL712-2 |
3/4 |
550 |
3.88 |
70 |
0.92 |
21 |
||||||
|
YL711-4 |
1/3 |
250 |
2 |
1400 |
62 |
0.92 |
12 |
|||||
|
YL712-4 |
1/2 |
370 |
2.82 |
65 |
0.92 |
16 |
||||||
|
YL801-2 |
80 |
1 |
750 |
5.2 |
2800 |
72 |
0.92 |
29 |
||||
|
YL802-2 |
1.5 |
1100 |
7 |
75 |
0.95 |
40 |
||||||
|
YL801-4 |
3/4 |
550 |
4 |
1400 |
68 |
0.92 |
21 |
|||||
|
YL802-4 |
1 |
750 |
5.22 |
71 |
0.92 |
29 |
||||||
|
YL801-6 |
1/2 |
370 |
2.95 |
960 |
62 |
0.92 |
16 |
|||||
|
YL802-6 |
3/4 |
550 |
4.2 |
65 |
0.92 |
21 |
||||||
|
YL90S1-2 |
90 |
1.5 |
1100 |
7 |
2800 |
75 |
0.95 |
40 |
||||
|
YL90S2-2 |
2 |
1500 |
9.45 |
76 |
0.95 |
1.7 |
55 |
|||||
|
YL90L-2 |
3 |
2200 |
13.7 |
77 |
0.95 |
80 |
||||||
|
YL90S1-4 |
1 |
750 |
5.22 |
1400 |
71 |
0.92 |
1.8 |
29 |
||||
|
YL90S2-4 |
1.5 |
1100 |
7.2 |
73 |
0.95 |
1.7 |
40 |
|||||
|
YL90L-4 |
2 |
1500 |
9.6 |
75 |
0.95 |
55 |
||||||
|
YL90S-6 |
3/4 |
550 |
4.2 |
960 |
65 |
0.92 |
21 |
|||||
|
YL90L-6 |
1 |
750 |
5.5 |
68 |
0.92 |
29 |
||||||
|
YL100L-2 |
100 |
3 |
2200 |
13.7 |
2800 |
77 |
0.95 |
80 |
||||
|
YL100L1-2 |
4 |
3000 |
18.2 |
79 |
0.95 |
110 |
||||||
|
YL100L1-4 |
3 |
2200 |
13.9 |
1400 |
76 |
0.95 |
80 |
|||||
|
YL100L2-4 |
4 |
3000 |
18.7 |
77 |
0.95 |
110 |
||||||
|
YL112M-4 |
112 |
5.5 |
4000 |
24.6 |
78 |
0.95 |
150 |
|

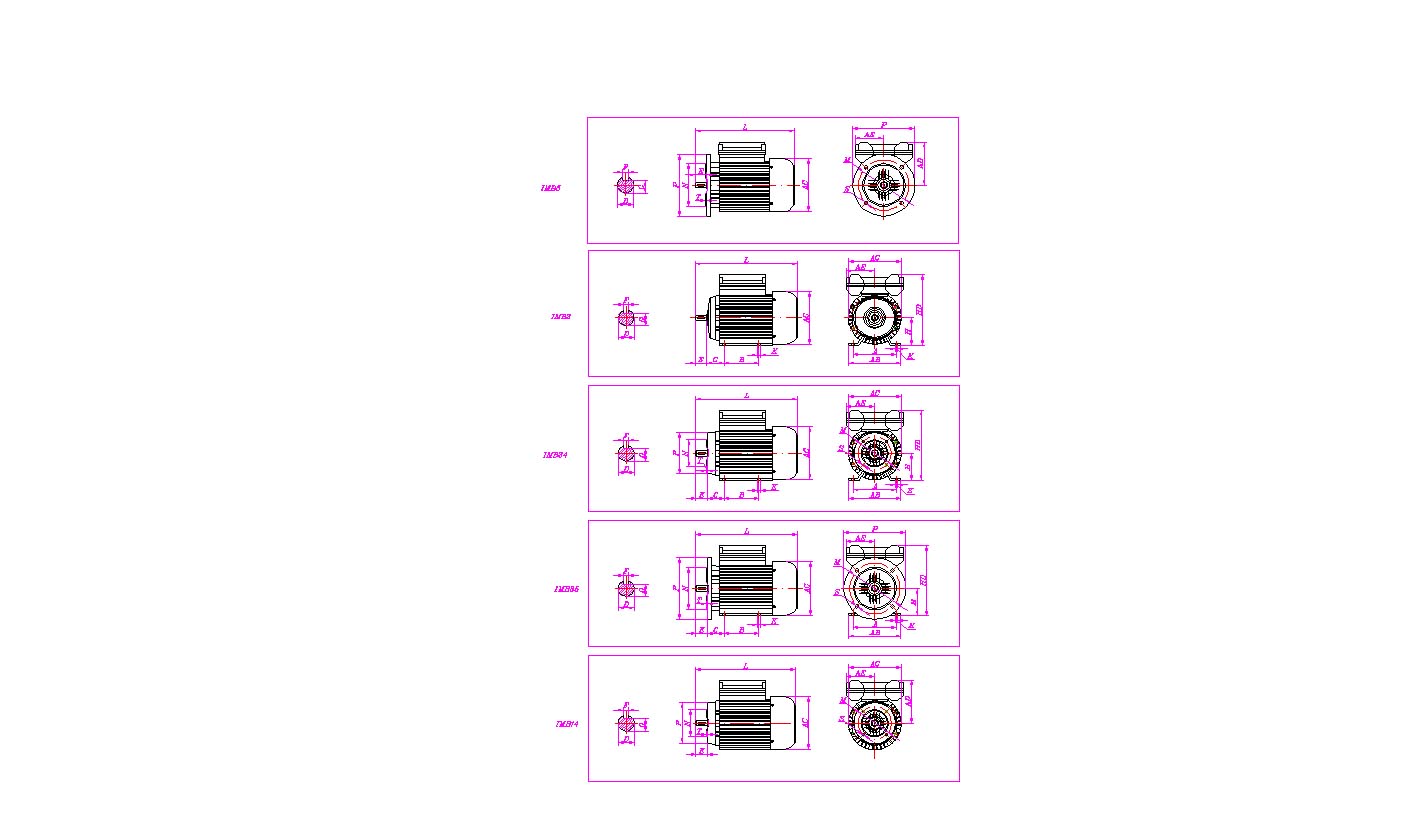

外形安裝尺寸 |
Outline & lnstallation Dimensions | ||||||||||||||||||||||||||||
|
機座尺寸 |
安裝尺寸 lnstallation Size(mm) |
安裝尺寸 lnstallation Size(mm)INB14 |
安裝尺寸 lnstallation Size(mm)IMB15 |
外形尺寸 Outline Dimension(mm) | |||||||||||||||||||||||||
|
Frame Size |
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L | |||
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
85 |
70 |
105 |
0 |
M6 |
2.5 |
130 |
110 |
160 |
0 |
10 |
3.5 |
145 |
145 |
125 |
205 |
255 | |||
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
100 |
80 |
120 |
0 |
M6 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
165 |
135 |
235 |
295 | |||
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
145 |
265 |
335 | |||
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
145 |
265 |
360 | |||
|
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
- |
- |
- |
- |
- |
- |
215 |
180 |
250 |
0 |
15 |
4.0 |
205 |
215 |
170 |
280 |
380 | |||
|
112M |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
- |
- |
- |
- |
- |
- |
215 |
180 |
250 |
0 |
15 |
4.0 |
245 |
240 |
180 |
310 |
400 | |||
|
| |||||||||||||||||||||||||||||
