YE2系列高效率三相異步電動機
圖片展示
產品規格
| 型號 | 機座號 | 功率 | 電壓 | 電流 | 頻率 | 轉速 | 效率 | 功率因數 | ||||
| TYPE | Frame | |||||||||||
| size | HP | kW | V | A | Hz | r/min | % | Tst/TN | Tm/TN | Ist/IN | ||
| YE2-80M1-2 | 1 | 0.75 | 380 | 1.8 | 50 | 2820 | 77.4 | 0.82 | 6.8 | |||
| YE2-80M2-2 | 80 | 1.5 | 1.1 | 2.53 | 2820 | 79.6 | 0.83 | 7.1 | ||||
| YE2-80M1-4 | 3/4 | 0.55 | 1.38 | 1390 | 6.5 | |||||||
| YE2-80M2-4 | 1 | 0.75 | 1.9 | 79.6 | 0.76 | 2.3 | 6.4 | |||||
| YE2-90S-2 | 2 | 1.5 | 3.34 | 2840 | 81.3 | 0.84 | 2.3 | 7.3 | ||||
| YE2-90L-2 | 3 | 2.2 | 4.73 | 83.2 | 0.85 | 7.6 | ||||||
| YE2-90S-4 | 90 | 1.5 | 1.1 | 2.7 | 1400 | 81.4 | 0.77 | 6.6 | ||||
| YE2-90L-4 | 2 | 1.5 | 3.53 | 82.8 | 0.78 | 6.7 | ||||||
| YE2-90S-6 | 1 | 0.75 | 2.12 | 910 | 75.9 | 0.71 | 2 | 5.8 | ||||
| YE2-90L-6 | 1.5 | 1.1 | 3 | 78.1 | 0.72 | 2.1 | 5.9 | |||||
| YE2-100L-2 | 4 | 3 | 6.2 | 2860 | 84.6 | 0.87 | 2.2 | 7.6 | ||||
| YE2-100L1-4 | 100 | 3 | 2.2 | 5 | 1420 | 84.3 | 0.8 | 2.3 | 2.3 | 7.3 | ||
| YE2-100L2-4 | 4 | 3 | 6.6 | 85.5 | 0.81 | 7.5 | ||||||
| YE2-100L-6 | 2 | 1.5 | 4 | 920 | 79.8 | 0.72 | 2 | 2.1 | 5.9 | |||
| YE2-112M-2 | 5.5 | 4 | 8.05 | 85.8 | 0.88 | 2.3 | 8.1 | |||||
| YE2-112M2-2 | 7.5 | 5.5 | 11 | 2880 | 87 | 0.88 | 8.2 | |||||
| YE2-112M3-2 | 112 | 9 | 6.5 | 13 | 87.5 | 0.88 | 2.2 | |||||
| YE2-112M4-2 | 10 | 7.5 | 14.6 | 88.1 | 0.89 | 7.8 | ||||||
| YE2-112M-4 | 5.5 | 4 | 8.7 | 1440 | 86.6 | 0.81 | 2.3 | 7.5 | ||||
| YE2-112M-6 | 3 | 2.2 | 5.7 | 940 | 81.8 | 0.72 | 2 | 2.1 | 6.2 | |||
| YE2-132S1-2 | 7.5 | 5.5 | 11 | 2900 | 87 | 0.88 | 2.2 | 8.2 | ||||
| YE2-132S2-2 | 10 | 7.5 | 14.6 | 88.1 | 0.89 | 7.8 | ||||||
| YE2-132S3-2 | 15 | 11 | 21 | 89.4 | 0.89 | 2.3 | 7.9 | |||||
| YE2-132M2-2 | 20 | 15 | 28.4 | 2930 | 90.3 | 0.89 | ||||||
| YE2-132L-2 | 132 | 25 | 18.5 | 34.8 | 90.9 | 0.89 | 8 | |||||
| YE2-132S-4 | 7.5 | 5.5 | 11.7 | 1440 | 87.7 | 0.82 | 2 | 7.5 | ||||
| YE2-132M-4 | 10 | 7.5 | 15.5 | 88.7 | 0.83 | 7.3 | ||||||
| YE2-132S-6 | 4 | 3 | 7.6 | 83.3 | 0.72 | 6.4 | ||||||
| YE2-132M1-6 | 5.5 | 4 | 9.7 | 960 | 84.6 | 0.74 | 2.1 | 6.6 | ||||
| YE2-132M2-6 | 7.5 | 5.5 | 13 | 86 | 0.75 | 6.8 | ||||||
| YE2-160M1-2 | 15 | 11 | 21 | 89.4 | 0.89 | 2.2 | 7.9 | |||||
| YE2-160M2-2 | 20 | 15 | 28.4 | 2930 | 90.3 | 0.89 | ||||||
| YE2-160L-2 | 25 | 18.5 | 34.8 | 90.9 | 0.89 | 2.3 | 8 | |||||
| YE2-160M-4 | 160 | 15 | 11 | 22.5 | 1460 | 89.8 | 0.83 | 7.4 | ||||
| YE2-160L-4 | 20 | 15 | 30 | 90.6 | 0.84 | 2 | 7.5 | |||||
| YE2-160M-6 | 10 | 7.5 | 16.8 | 970 | 87.2 | 0.78 | 2.1 | 6.8 | ||||
| YE2-160L-6 | 15 | 11 | 23.9 | 88.7 | 0.79 | 6.9 | ||||||

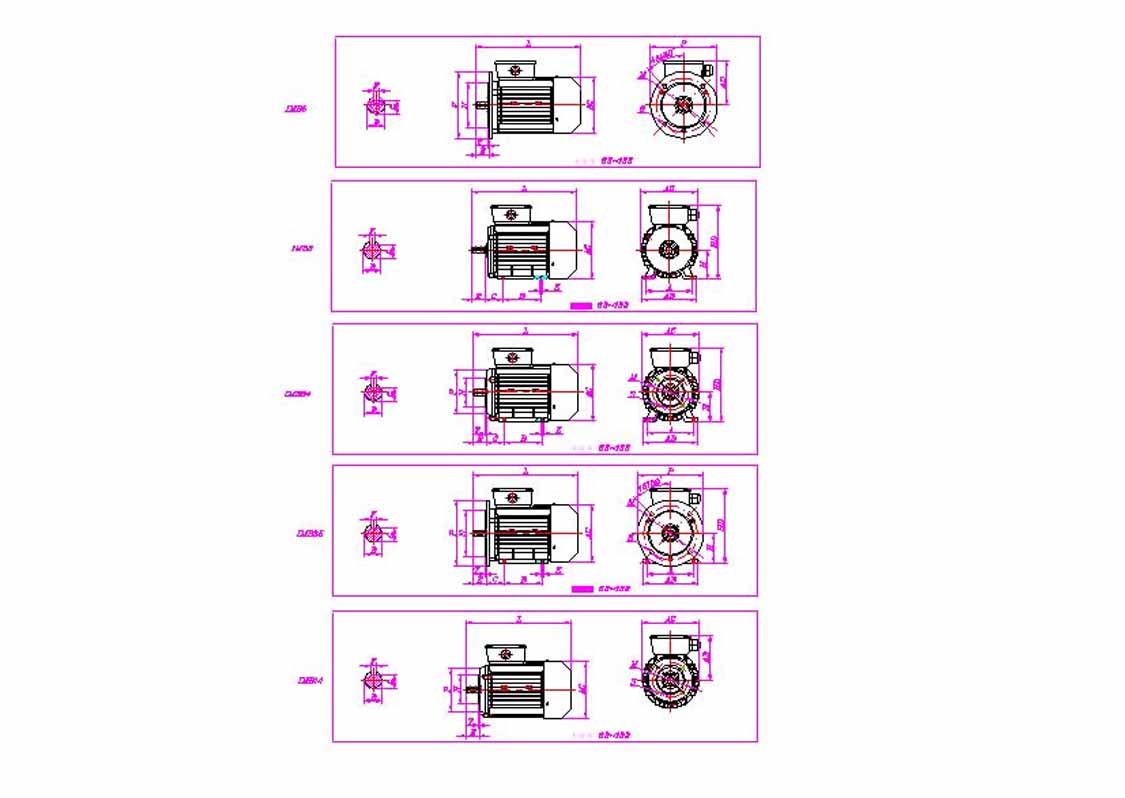

| 機座號 | 安裝尺寸Installation Size(mm) | 安裝尺寸Installation Size(mm) | 安裝尺寸Installation Size(mm) | 外形尺寸Outline Dimension | ||||||||||||||||||||||
| Frane | IMB3 | IMB14 | IMB5 | (mm) | ||||||||||||||||||||||
| Size | ||||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | HD | L | |
| 80M | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M6 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 165 | 175 | 145 | 220 | 305 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 195 | 165 | 260 | 360 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 195 | 165 | 260 | 390 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 14.5 | 4 | 205 | 215 | 180 | 270 | 435 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 14.5 | 4 | 230 | 240 | 190 | 300 | 470 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 14.5 | 4 | 270 | 275 | 210 | 345 | 510 | ||||||
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 265 | 230 | 300 | 0 | 14.5 | 4 | 270 | 275 | 210 | 345 | 560 | ||||||
| 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 14.5 | 300 | 250 | 350 | 0 | 18.5 | 5 | 320 | 330 | 255 | 420 | 730 | ||||||
| 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 14.5 | 300 | 250 | 350 | 0 | 18.5 | 5 | 320 | 330 | 255 | 420 | 760 | ||||||
